Product Name # GUARDIAN CONDENSERS RAC13 + COIL CF |
|
GOODMAN CONDENSERS MODEL/SERIAL # RAC13L18B23S |
GOODMAN EVAPORATOR MODEL/SERIAL #
: CF24BXA1 |
Nominal Capacity (Ton) |
TON
: 2 |
TYPE OF UNIT: Residential split AC 13 seer R410A |
TYPE OF UNIT
: 17 ½” WIDE |
Do You Need Installation?

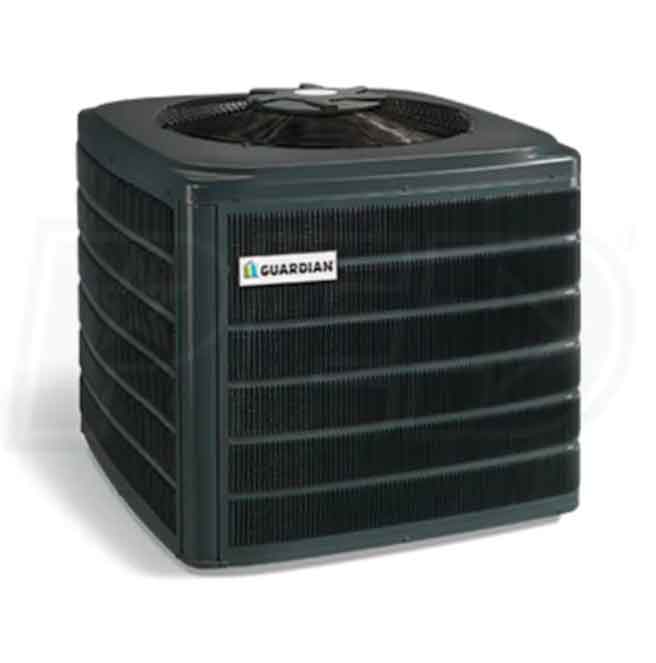

Backed by Johnson Controls, the Guardian brand strives to uphold quality standards unparalleled in the industry - delivering performance, efficiency, and reliability you can trust. Their RAC-13 air conditioner brings effective cooling at a tremendous value to homes of nearly all shapes and sizes. The RAC13J184S21's design places an emphasis on longevity and affordability. The installation and maintenance processes are streamlined to reduce both upfront and ongoing labor costs. This is complimented by the unit's excellent durability. The final result is an air conditioner that you can count on to keep you comfortable year after year.
Aluminum Coil Design
The RAC13J184S21's condenser coil features aluminum construction for enhanced heat transfer and fins for maximum surface area. Microchannels are utilized to keep the coil's size down without sacrificing efficiency.
Compressor Protection
Guardian employs three forms of compressor protection to keep your investment running smoothly. An internal high pressure switch, a temperature sensor, and a liquid line filter-drier safeguard your air conditioner against malfunctions and damages.
Low Noise
Fan noise is no concern for Guardian air conditioners. The top panel and compressor mounts are designed to isolate and reduce the unit's operational noise, allowing you to enjoy quiet comfort.
Built to Last
RAC13 air conditioners are designed for longevity. Steel cabinet construction, a wire fan guard, and a coil guard all keep the RAC13J184S21 safe from harm, and a UV-resistant paint job keeps it looking great for years.
Easy to Install, Easy to Maintain
Guardian's RAC13J184S21 air conditioner is optimized for fast installation and servicing. The electrical and refrigerant connections are easily accessible, and the permanently lubricated motor bearing design is maintenance free.
Compliance with US Federal Regional Efficiency Standards is dependent on the rated efficiency of your entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please confirm before purchasing by calling us at 866-554-4328 or email us at sales@eComfort.com.
General Information
Type
Outdoor Condenser
Product Line
RAC13
Operating Mode
Cooling Only
Refrigerant Type
R-410A
Compressor Stages
Single
Performance
Capacity
1.5 Tons
Nominal Cooling Capacity
18000 BTU
Maximum Sound Level
75 dB
Nominal SEER
13.0
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10 Amps
Dimensions
Product Height
28 1/4 Inches
Product Width
24 Inches
Product Depth
24 Inches
Product Weight
97 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
Country of Origin
United States
CSA Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
5 Years
Compressor Warranty
5 Years
